The Teknologg ASW-14 is MOx based gas sensor for air quality applications using WIFI.
Features:
- Long term stability
- Supports HTTP/HTTPS/TCPIP/MQTT
- Station/SoftAP WIFI Modes Support
- Local/Cloud Monitoring
- High Accuracy
- Programmable Alarm Points
- Easy installation
This sensor is suitable for immediate and continuous monitoring of VOCs and NOx, including those potentially harmful events which cannot be perceived by the human senses.
Internal WIFI supports both Station/SoftAp, so it is possible to access sensor data on local network or directly connect to device and get data.
Using Teknologg Mobile Application/Daloco Software Data can be read from device.

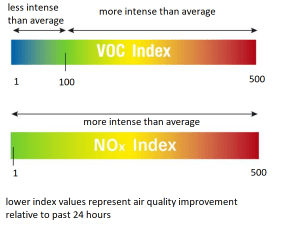

lower index values represent air quality improvement relative to past 24 hours.
The sensor can connect to The Teknologg cloud servers by default. In order to connect this device to other IOT platforms please contact us before purchasing.
Air Quality Characteristics
Output Data 1 ~ 500 VOC Index Points
1 ~ 500 Nox Index Points
Measuring range 0 ~ 1,000,000 ppb Ethanol in clean air
0 ~ 10,000 ppb NO2 in clean air
Device to Device Variations <±15 VOC Index Points
<±50 NOx Index Points
Repeatability <±5 VOC Index Points
<±5 NOx Index Points
Response Time VOC <10 s
NOx< 250 s
Operating Conditions -10 ~ 50 °C
0 ~ 90 % R.H
WIFI Parameters:
Frequency 2.4GHz EEE802.11b/g/n
Output Power +20dbm for 11b mode
Receiver Sensitivity -94 dBm
WIFI Modes Station/SoftAP
General Parameters:
Power Supply 5~ 12 VDC
Power Cable DC Female power Connector
Power Cable Length 1.5 meter
(can be extend as request)
Housing IP40
Dimensions 88.5x63x27.5 mm
