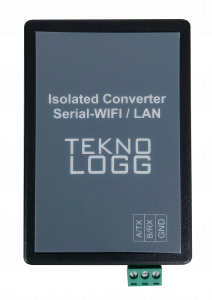

Isolated Serial to WIFI/LAN converter suitable for industrial and harsh environments.
Features:
- 1‘000 VDC internal isolation On Power Lines
- Optical Isolation On Data Lines
- Easy installation
- Configuration Using Browser
- No need To external Router/Modem
- Transparent Data Converter
Isolated Serial to WIFI/LAN converter suitable for industrial and harsh environments. The device uses internal isolated dc converter for powering serial port and optical isolation on data lines.
General Parameters:
Serial Ports 1x RS485/RS232
Please Refer To ordering Information
Baud rate 50 ~ 115200 bps
RS232 Signals DB9 connector
Tx, Rx, RTS, CTS, GND
3pin Terminal
Tx, Rx,GND
RS485 Signals 3pin Terminal
A, B,GND
Working Temperature -20 ~ 75°C
Dimensions 115x75x26 mm
Network Standard wireless：IEEE802.11n, IEEE802.11g, IEEE802.11b
wired: IEEE 802.3, IEEE 802.3u
Wireless Transmission Rate 11n: maximum up to 150Mbps 11g: maximum up to 54Mbps 11b: maximum up to 11Mbps
Frequency range 2.4-2.4835G
Emission power 12-15 dbm
Wireless security WPA-PSK/WPA2-PSK、WPA/WPA2
Network management Remote Web management
TCP connection Max connection number>20
UDP connection Max connection number>20
| Product No. | Details |
| SRW-10 | Isolated RS232-WIFI/LAN Converter |
| SRW-20 | Isolated RS485-WIFI/LAN Converter |
