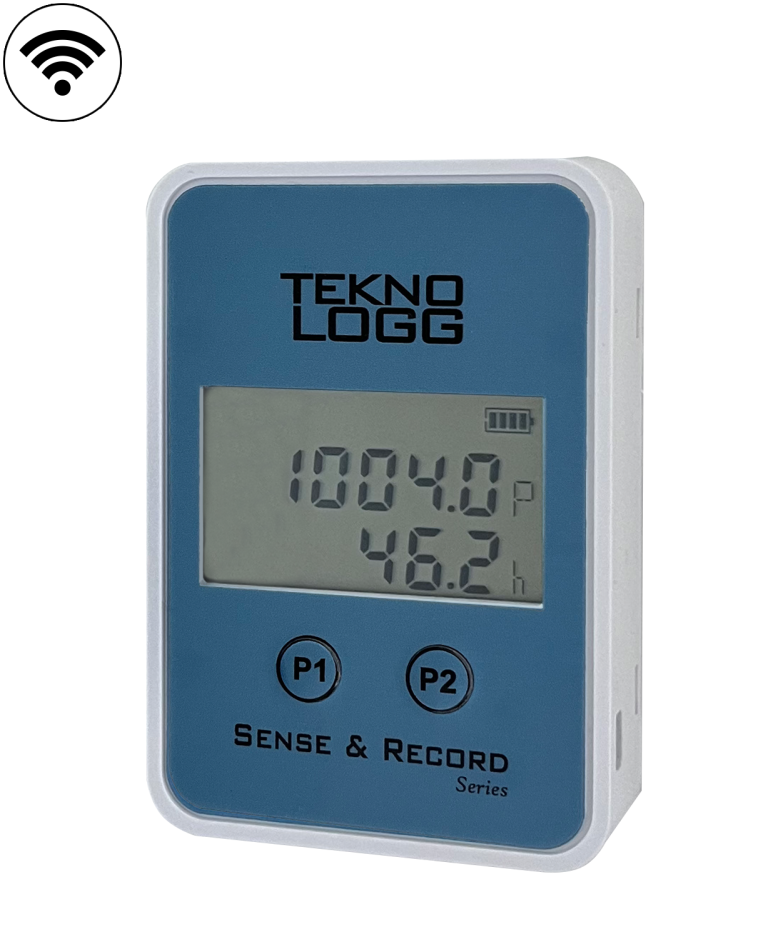

Sense & Record Series TL-190 WIFI data logger is suitable for monitoring environmental parameters with built in sensors for measuring, displaying and recording of air pressure, temperature and humidity data.
Features:
- Long term stability
- High Accuracy
- WIFI Support(TCP/IOT Device)
- Remote Monitoring
- Optional ISO-17025 accredited calibration certificate.
- Battery Operation
- Internal Memory with External Micro SD support
- CSV Format Data Export
- Capability to Calibration up to 20 Reference points
- Programmable High and Low Alarms
- Real Time Data & Charting in Software
- Max/Min Values Display
- Alarm Display on LCD
The Teknologg TL-190 WIFI data logger is suitable for monitoring environmental parameters with built in sensors for measuring, displaying and recording of air pressure, temperature and humidity data.
Air Pressure values is compensated over temperature changes.
Device Supports TCP/IP connection for monitoring on local networks and also can be setup as IOT device to use Teknologg cloud servers for remote monitoring.
This device features calibration capability which can be tested and calibrated up to 20 reference points in calibration laboratories. by applying calibration points and actual reading values on these points using Daloco Software, the device automatically corrects for any deviation and errors this feature guarantees long term operation with the required accuracy.
Maximum and Minimum values from the last reset can be shown on LCD by key functions.
Stored values can be transferred to pc via USB port and Daloco software. Device configuration, reading real values and live charting can be done by easy to use Daloco software.
The Smart Logg mobile application is Teknologg another product which is used to
receive data by using TCP/IP connection or cloud service.
| Air Pressure | Characteristic |
|---|---|
| Probe Type | Internal sensor |
| Measuring range | 300 ~ 1100 hPa Not for use in condensing conditions |
| Accuracy | ±1 hPa @ t>0 ±1.7 hPa @[-20 ~ 0] °C |
| Repeatability | 0.1 hPa |
| Resolution | 0.1 hPa |
| Long-term drift | ±1 hPa/yr. |
Temperature Characteristic
Probe Type Internal sensor
Measuring range -20 ~ 70 °C
Not for use in condensing conditions
Accuracy typ. ±0.4 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
| Humidity | Characteristic |
|---|---|
| Probe Type | Internal sensor |
| Measuring range | 0 ~ 100% Not for use in condensing conditions |
| Accuracy | typ. ±3% R.H |
| Resolution | 0.1 % R.H |
| Long-term drift | : <0.25 %RH/yr. |
| Frequency | 2.4GHz EEE802.11b/g/n |
| Output Power | +20dbm for 11b mode |
| Receiver Sensitivity | -94 dBm |
| WIFI Modes | Station/SoftAP |
| Measure Time | 1 seconds ~ 24 hours (configured by software) |
| Battery | 1*3.6v (14500) Lithium-ion Rechargeable Battery |
| Memory | Internal:70000 Temperature & humidity Records External micro SD support up to 32GB |
| Logging Time Interval | 3 seconds ~ 24 hours (configured by software) |
| Interface | Mini USB-B Port |
| Dimensions | 110x76x27mm |
| Product Number | Details |
|---|---|
| TL190.20.1 | Battery Type: Li-Ion Size:14500 Rechargeable |
| TL190.20.2 | Battery not shipped with Device Supports Battery Type: Li-Ion Size:14500 Rechargeable |
