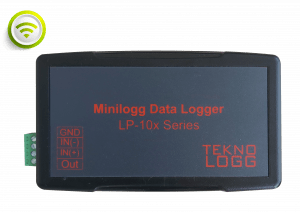

The Teknologg LP-104 thermocouple data loggers are low power battery operated devices are used for reading thermocouple temperature probes.
Features:
- High Accuracy
- Battery Operation
- WIFI Support
- Remote Monitoring
- 24 Bit ADC
- Low Noise
- Internal Memory with External Micro SD support
- USB Interface
- Recording Up to 100 Hz
- Programmable High and Low Alarms
- Real Time Data View in Software
The Teknologg LP-104 thermocouple data loggers are low power battery operated devices are used for reading thermocouple temperature probes.
Data logger uses built in high precision NTC Thermistor for cold connection temperature compensation.
Data Logger support eight different type thermocouple: J,R,S,B,N,K,E,T;
Thermocouple type selection is done by software.
Device Supports TCP/IP connection for monitoring on local networks and also can be setup to the Teknologg cloud servers for remote monitoring.
Stored values can be transferred to pc via USB port and Daloco software. Device configuration, reading real values and live charting can be done by easy to use Daloco software.
The Smart Logg mobile application is Teknologg another product which is used to receive data by using TCP/IP connection or cloud service.
Thermocouples Measuring Characteristic
Thermocouples Probes J,R,S,B,N,K,E,T
Resolution 0.1 °C
Accuracy 0.5°C @ J,N,K,E,T
1°C @ R,S,B
Noise Rejection Simultaneous 50 Hz/60 Hz
Internal Temperature Characteristic
Probe Type Internal NTC
Measuring range -30 ~ 80 °C
Not for use in condensing conditions
Accuracy typ. ±0.5 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
WIFI Parameters
Frequency 2.4GHz EEE802.11b/g/n
Output Power +20dbm for 11b mode
Receiver Sensitivity -94 dBm
WIFI Modes Station/SoftAP
General Parameters:
| Measure Time | 0.01 seconds ~ 24 hours (configured by software) |
| Battery | 3xAA Alkaline |
| Memory | Internal:140000 Records External micro SD support up to 32GB |
| Logging Time Interval | 1 seconds ~ 24 hours (configured by software) |
| Interface | Mini USB-B Port |
| Working Temperature | -30 ~ 80°C Not for use in condensing conditions |
| Dimensions | 100x68x22mm |
| Product No. | Details |
|---|---|
| LP-104.20.0 | Data Logger with 3xAA Alkaline Battery |
| LP-104.20.1 | Battery not shipped with device |
