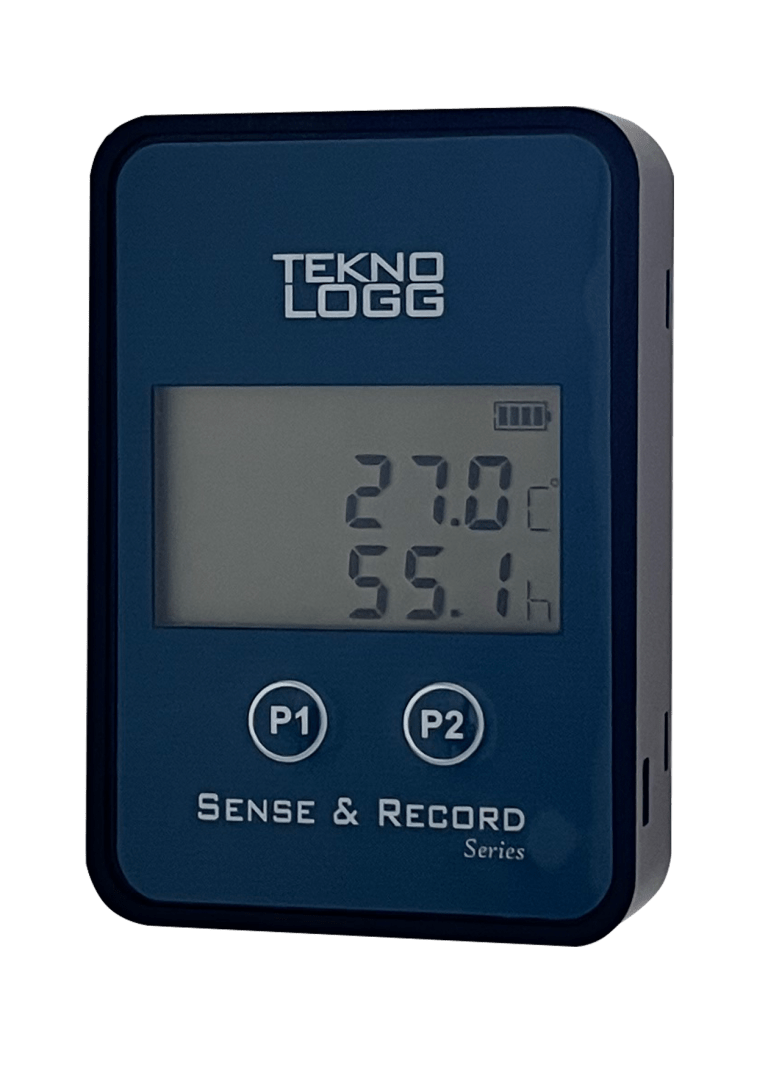

The Teknologg TL-170 GSM data logger with built in sensors are used for measuring, displaying and storing temperature and humidity data.
Features:
- Long term stability
- High Accuracy
- GSM Support
- GPRS/SMS Data Monitoring
- Battery Operation
- Internal Memory with External Micro SD support
- Programmable High and Low Alarms
- Real Time Data View in Software
- Alarm Display on LCD
The Teknologg TL-170 GSM data logger
with built in sensors are used for measuring, displaying and storing
temperature and humidity data.
Device Supports GPRS connection and
SMS Short messages can be send to user during alarm and also on predefined intervals,
also Using GPRS connection data can be upload to the Teknologg cloud servers .
Maximum and Minimum values from last
reset can be shown on LCD by key functions.
Stored values can be transferred to pc
via USB port and Daloco software. Device configuration, reading real values and
live charting can be done by easy to use Daloco software.
The Smart Logg mobile application is
Teknologg another product which is used to receive data from cloud servers.
Temperature Characteristic
Probe Type Internal
Measuring range -20 ~ 70 °C
Accuracy typ. ±0.4 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
Humidity Characteristic
Probe Type Internal sensor
Measuring range 0 ~ 100%
Not for use in condensing conditions
Accuracy typ. ±3% R.H
Repeatability 0.1 % R.H
Resolution 0.1 % R.H
Long-term drift : <0.25 %RH/yr.
GSM Characteristics
Frequency bands Quad-band: GSM850,EGSM900, DCS1800,PCS1900
Transmit Power 1 ~ 2 W
GPRS Connectivity Class 12
Sim Card Type Micro Sim
General Parameters:
Measure Time 1 seconds ~ 24 hours (configured by software)
Battery 1*3.6v (14500) Lithium-ion Rechargeable Battery
Memory Internal:70000 Temperature & humidity Records
External micro SD support up to 32GB
Logging Time Interval 3 seconds ~ 24 hours (configured by software)
Interface Mini USB-B Port
Dimensions 110x76x27mm
| Product Number | Details |
|---|---|
| TL170.12.1 | Battery Type: Li-Ion Size:14500 Researchable |
| TL170.12.2 | Battery not shipped with Device Supports Battery Type: Li-Ion Size:14500 Researchable |
