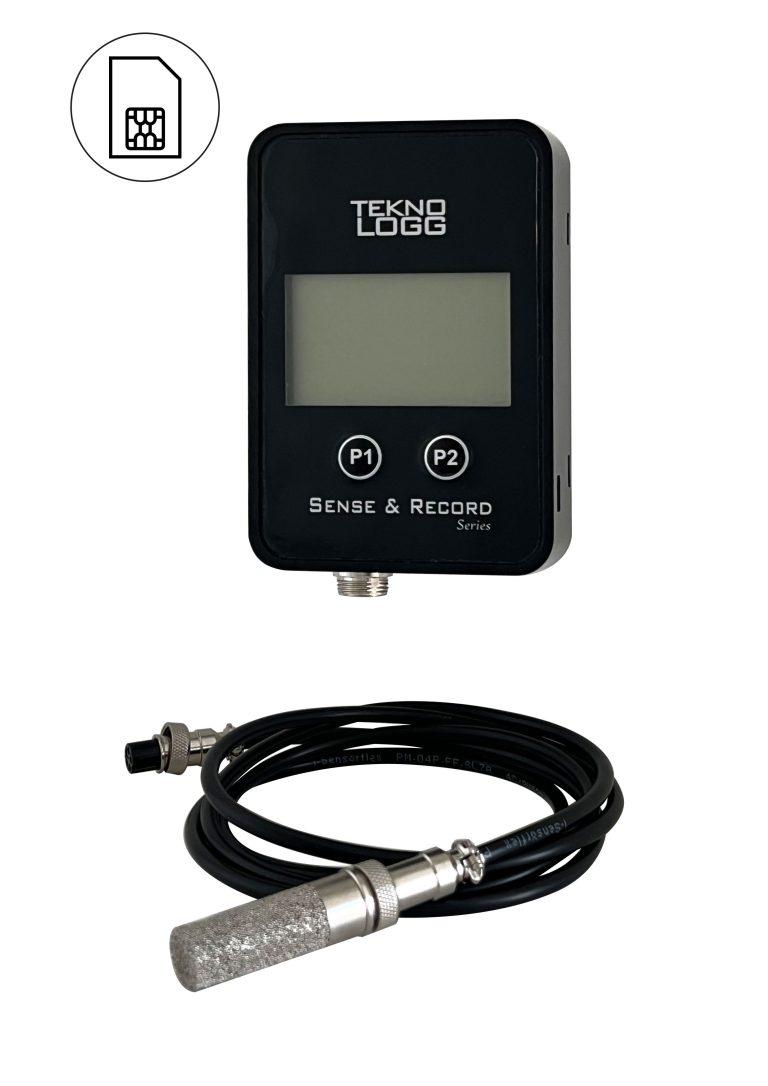

The Teknologg TL-130 GSM data logger with external probe are used for measuring, displaying and recording of temperature and humidity data.
Features:
- Long term stability
- High Accuracy
- GSM Support
- GPRS/SMS Data Monitoring/IOT Device
- CSV File Format for Data Export
- Optional ISO-17025 accredited calibration certificate.
- Capability to Calibration up to 20 Reference points
- Battery Operation
- Internal Memory with External Micro SD support
- Programmable High and Low Alarms
- Real Time Data View in Software
- Alarm Display on LCD
The Teknologg TL-130 GSM data logger with external probe are used for measuring, displaying and recording of temperature and humidity data.
Device Supports GPRS connection and SMS Short messages can be send to user during alarm and also on predefined intervals, also Using GPRS connection data can be upload to the Teknologg cloud servers .
This device features calibration capability which can be tested and calibrated up to 20 reference points in calibration laboratories. by applying calibration points and actual reading values on this points using Daloco Software, device automatically corrects for any deviation and errors this feature guarantees long term operation with required accuracy.
Maximum and Minimum values from last reset can be shown on LCD by key functions.
Stored values can be transferred to pc via USB port and Daloco software. Device configuration, reading real values and live charting can be done by easy to use Daloco software.
The Smart Logg mobile application is Teknologg another product which is used to receive data from cloud servers.
| Temperature | Characteristic |
|---|---|
| Probe Type | External |
| Measuring range | -40 ~ 90 °C |
| Accuracy | typ. ±0.4 °C |
| Repeatability | ±0.1 °C |
| Resolution | 0.1 °C |
Humidity Characteristic
Probe Type External sensor
Measuring range 0 ~ 100%
Not for use in condensing conditions
Accuracy typ. ±3% R.H
Repeatability 0.1 % R.H
Resolution 0.1 % R.H
Long-term drift : <0.25 %RH/yr.
| Frequency bands | Quad-band: GSM850,EGSM900, DCS1800,PCS1900 |
|---|---|
| Transmit Power | 1 ~ 2 W |
| GPRS Connectivity | Class 12 |
| Sim Card Type | Micro Sim |
| Measure Time | 1 seconds ~ 24 hours (configured by software) |
| Battery | 1*3.6v (14500) Lithium-ion Rechargeable Battery |
| Memory | Internal:70000 Temperature & humidity Records External micro SD support up to 32GB |
| Logging Time Interval | 3 seconds ~ 24 hours (configured by software) |
| Interface | Mini USB-B Port |
| Dimensions | 110x76x27mm |
| Product Number | Details |
|---|---|
| TL130.12.1 | Battery Type: Li-Ion Size:14500 Researchable |
| TL130.12.2 | Battery not shipped with Device Supports Battery Type: Li-Ion Size:14500 Researchable |
