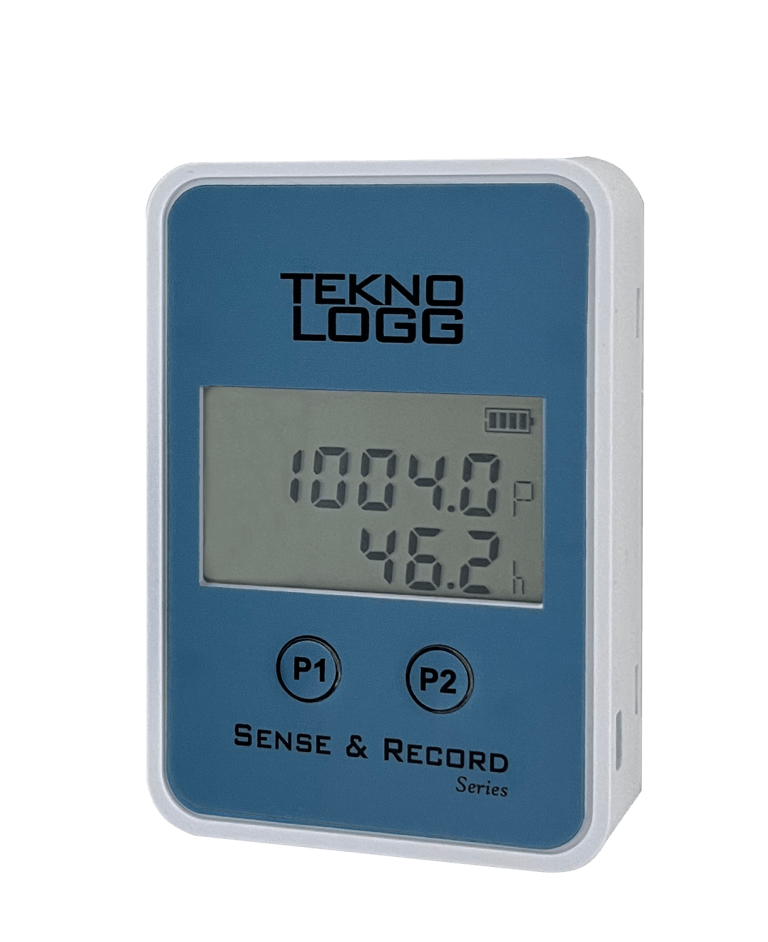

Sense & Record Series TL-190 data logger is suitable for monitoring environmental parameters with built in sensors for measuring, displaying and recording of air pressure, temperature and humidity data.
Features:
- Long term stability
- High Accuracy
- Optional ISO-17025 accredited calibration certificate.
- Battery & USB Operation
- Internal Memory with External Micro SD support
- CSV Format Data Export
- Capability to Calibration up to 20 Reference points
- Programmable High and Low Alarms
- Real Time Data & Charting in Software
- Max/Min Values Display
- Alarm Display on LCD
Sense & Record
Series TL-190 data logger is suitable for monitoring environmental
parameters with built in sensors for measuring, displaying and recording of air
pressure, temperature and humidity data.
Air Pressure values are compensated over temperature changes.
This device features calibration capability which can be
tested and calibrated up to 20 reference points in calibration
laboratories. by applying calibration points and actual reading values on these
points using Daloco Software, the device automatically corrects for any
deviation and errors this feature guarantees long term operation with the
required accuracy.
Maximum and Minimum values from the last reset can be viewed on
LCD by key functions.
Device can be order on both Rechargeable &
non-rechargeable battery types for covering different applications.
Stored values can be transferred to pc via USB port and
Daloco software. Device configuration, reading real values and live
charting can be done by easy to use Daloco software.
| Air Pressure | Characteristic |
|---|---|
| Probe Type | Internal sensor |
| Measuring range | 300 ~ 1100 hPa Not for use in condensing conditions |
| Accuracy | ±1 hPa @ t>0 ±1.7 hPa @[-20 ~ 0] °C |
| Repeatability | 0.1 hPa |
| Resolution | 0.1 hPa |
| Long-term drift | ±1 hPa/yr. |
Temperature Characteristic
Probe Type Internal sensor
Measuring range -20 ~ 70 °C
Not for use in condensing conditions
Accuracy typ. ±0.4 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
| Humidity | Characteristic |
|---|---|
| Probe Type | Internal sensor |
| Measuring range | 0 ~ 100% Not for use in condensing conditions |
| Accuracy | typ. ±3% R.H |
| Resolution | 0.1 % R.H |
| Long-term drift | : <0.25 %RH/yr. |
| Measure Time | 1 seconds ~ 24 hours (configured by software) |
| Battery | 1* 3.6v AA (LI- SOCl2) battery OR 1*3.6v (14500) Lithium-ion Rechargeable Battery Refer to order code please |
| Battery Life(non-rechargeable type) | approx. 3 years (5 min measure cycles) |
| Memory | Internal:70000 Temperature & humidity Records External micro SD support up to 32GB |
| Record Time Interval | 3 seconds ~ 24 hours (configured by software) |
| Interface | Mini USB-B Port |
| Dimensions | 110x76x27mm |
| Product Number | Details |
|---|---|
| TL190.10.1 | Battery Type: LI-SICO2 Size: AA Non-Rechargeable |
| TL190.10.2 | Battery Type: Li-Ion Size:14500 Rechargeable |
| TL190.10.3 | Battery not shipped with Device Supports Battery Type: LI-SICO2 Size: AA Non-Rechargeable |
| TL190.10.4 | Battery not shipped with Device Supports Battery Type: Li-Ion Size:14500 Rechargeable |
